ARB Summit Bar - Suzuki Jimny IV 2019 On

ARB bumpers are designed and manufactured not only to ensure maximum functionality, but also to enhance the look of the vehicle.

The Summit Bumper builds on the architecture of the popular Deluxe ARB Bumper and incorporates a new and modern design line to enhance modern vehicles.

Summit Bumpers can accommodate winches and offer the latest in protection and style to your vehicle. Intensity ARB, IPF and Bushranger LED high beam mounting locations are available on the top plate of the bar, while the ARB LED turn signal and side marker light assembly is included as standard.

Durable Integrit textured black powder coat finish. Color change is not possible with the Integrit finish.

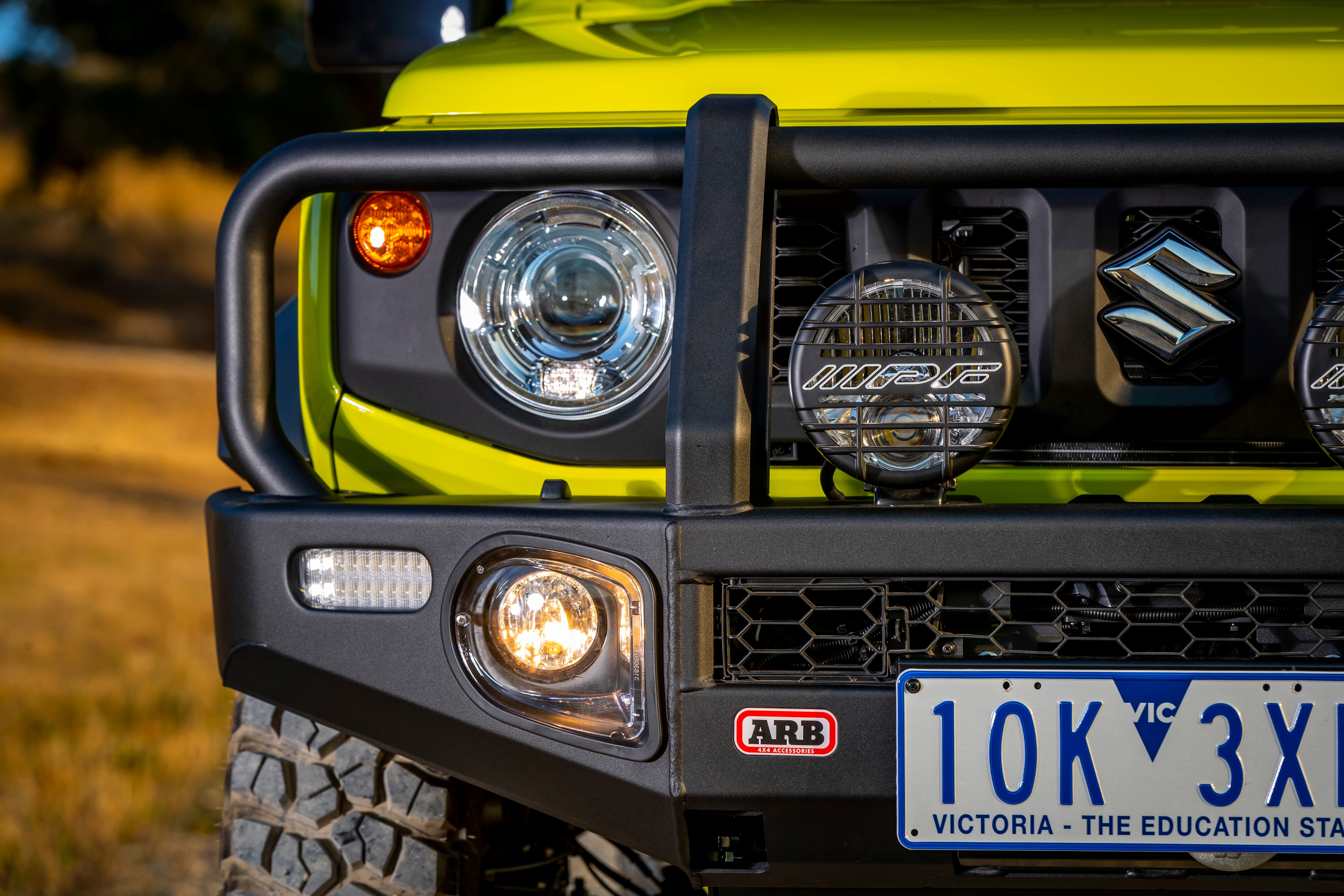

Note: The bumper in the illustration has the original Suzuki fog lights.

• Vehicle specific design to complement the Suzuki Jimny MY19
• Durable steel construction for maximum protection
• Incorporates ARB’s renowned multi-fold upswept and tapered wing design for optimum strength and approach angle
• 10mm radius on wings and centre section
• Engineered, air bag compatible mounting system secures to chassis via high tensile M10 fasteners
• Split pan design for maximum strength and airflow
• Three piece grille design for split pan
• 47.6mm outer tubing and centre cross bar
• Formed cover straps
• Pressed form top pan and aluminium winch cover panel (powder coated black)
• Combination style bar to suit both winch and non winch applications
• Twin ARB Jack or Hi-Lift jack points adjacent to the bar uprights
• Will accommodate Warn and mid frame winches up to 8,000lb
• Provision to accommodate ARB Intensity LEDs and a range of IPF and Bushranger driving lights
• Provision for OE headlight washers
• Provision for OE foglights
• Provision for optional ARB Fog Light Covers
• Includes ARB LED indicator & clearance light
• Finished in Integrit textured black powder coat. Integrit is not suitable for colour coding.
